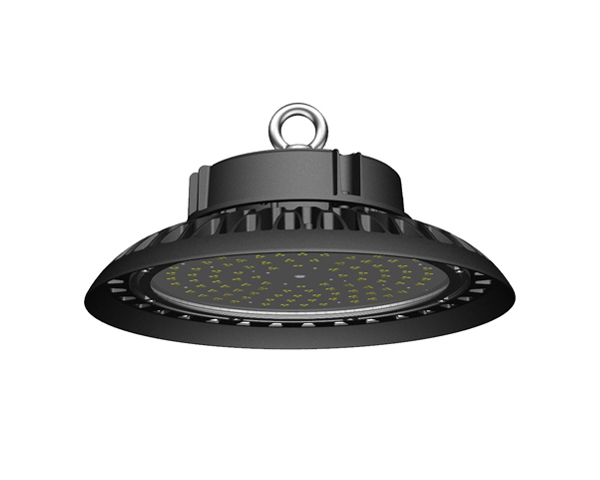

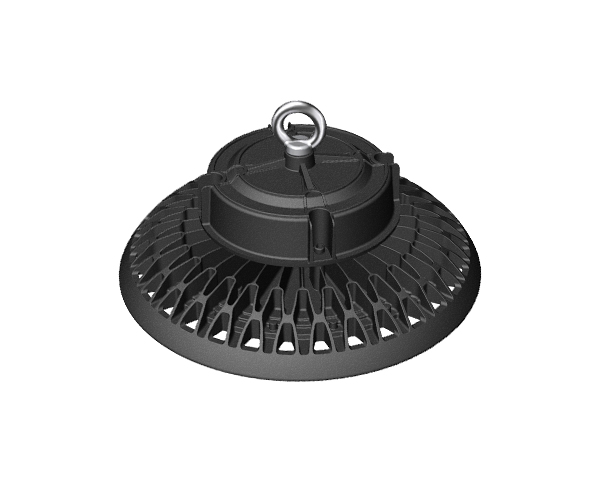

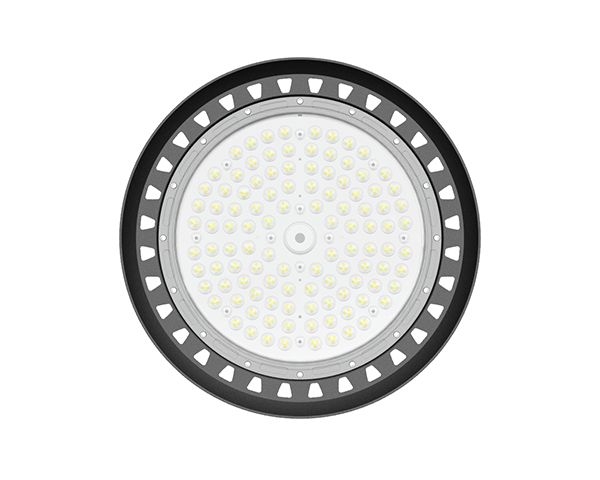

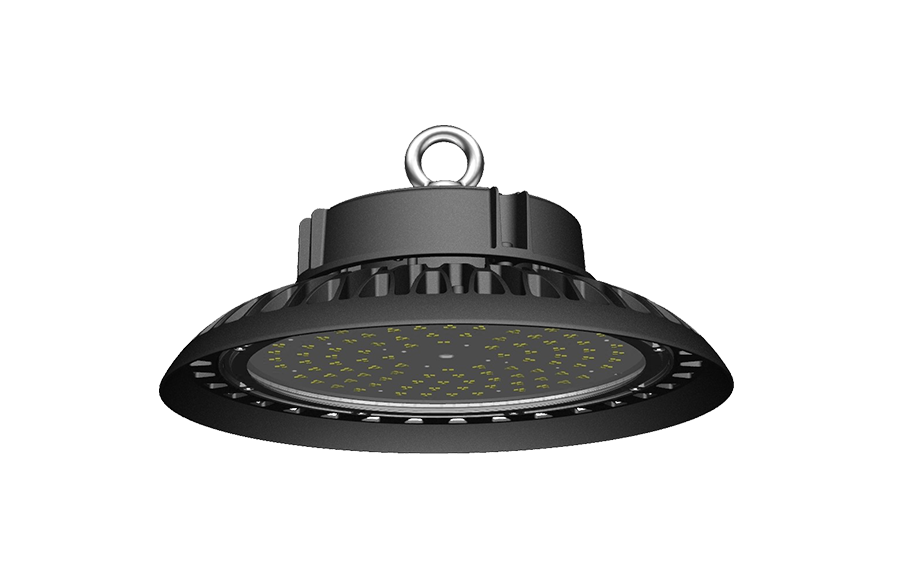

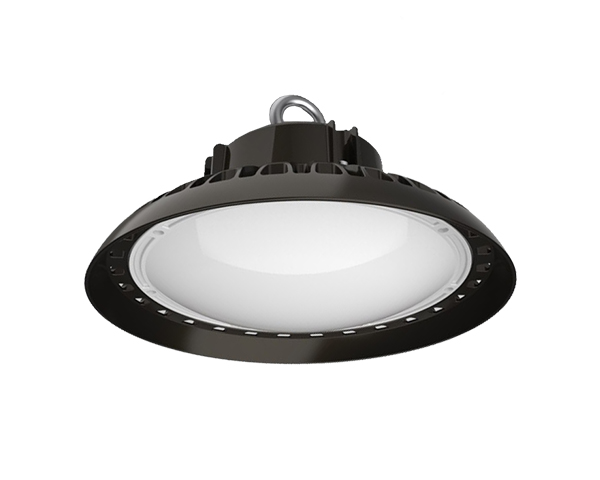

HB04 High Bay

Model

Nominal wattages (W)

Nominal voltage

Rated luminous efficacy (lm/w)

Nominal luminous flux (lumen)

Beam Angle

LED Quantity

CRI

HB04-100W

100W

AC100~277V
  50~60Hz

140±10

14000±1000

90°/120°

168 PCS
1W 3030

>70

HB04-150W

150W

140±10

21000±1500

168 PCS
  1W 3030

HB04-200W

200W

140±10

28000±2000

252 PCS
  1W 3030

Model

Nominal wattages (W)

Nominal voltage

Rated luminous efficacy (lm/w)

Nominal luminous flux (lumen)

Beam Angle

LED Quantity

CRI

HB04-100W

100W

AC100~277V
  50~60Hz

170±10

17000±1000

90°/120°

210 PCS
1W 2835

>70

HB04-150W

150W

170±10

25500±1500

315 PCS
1W 2835

HB04-200W

200W

170±10

34000±2000

405 PCS
1W 2835

Operating frequency

47-63HZ

Available light colors

warm white;natural white;daylight   white

Type of current

AC100-277V

Available color temperatures

3000K;4000K;5000K;6000K

Power factor λ

>0.95

Color rendering index Ra

 >70

Efficiency in %

>91%

Standard deviation of color matching

<5

Start time (0.2s / 0.5s / … )

0.1S

UGR (Unified Glare Rating)

<27

Warm-up time to 60 % (1.5s / 2s / … )

0.5S

Available beam angles

90°/120°

Type of protection

IP65

Heatsink temperature

5~+70℃

Tested dielectric strength

3.75KVac

Ambient temperature

-30~+55℃

Safety features

Open circuit protection;
short circuit protection ;
overvoltage protection

Storage temperature

-40~+80℃

Certificates

American market: UL, DLC Premium, cUL
European market: TUV,CE (EMC, LVD, RoHS)
Australian market: SAA, C-Tick, RCM

Energy efficiency class

A+&A++

Rated nominal Lifetime

50,000hours

Base/Socket

Directly wired

Switching cycles

100,000 times

Dimmable

1-10V dimmable

Lumen maintenance at e.o.l.

70%

Model

Dimension

CTN SIZE(mm)

QTY/CTN

Net Weight/pcs(kg)

Gross Weight /CTN(kg)

HB04-100W/150W

Φ380*188

37*37*23

1PCS

3.8

4.8

HB04-200W

Φ360*188

41*41*23

1PCS

5.3

6.5
