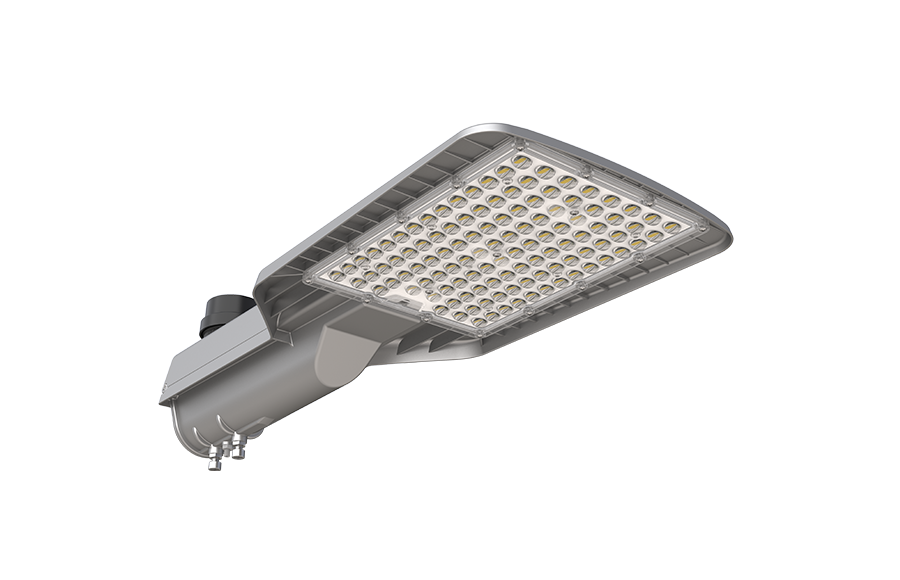

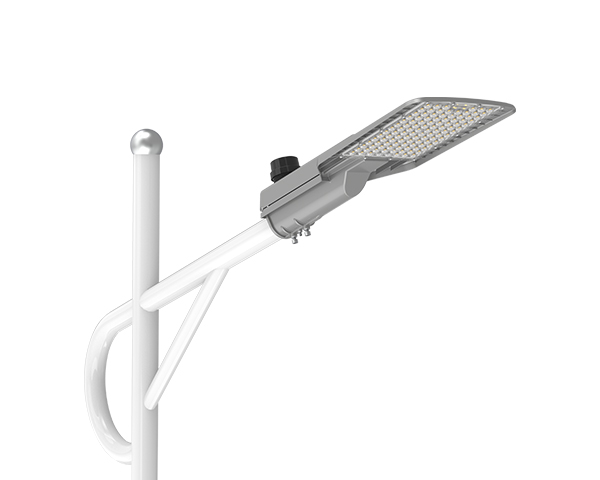

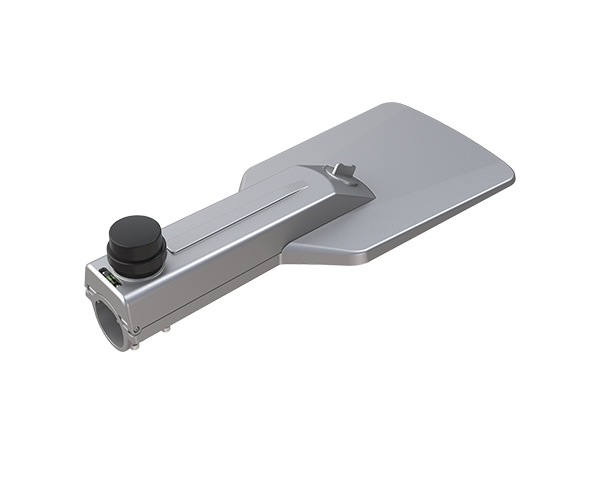

ST03 Street Light

1.Extremely energy efficient - up to 140 lm/w.

2.High Luminous flux - up to 33.600 lm.

3.Excellent heat dissipation and modern design.

4.Slim and compact profile for maximum wind resistance.

5.Durable and long-lasting power driver (flicker-free for models above 50W).

6.Circuit interrupter for maintenance access.

7.Adjustable installation angle?vertically or horizontally ?.

8.IP66 for all weather conditions.

9.5 years warranty.

Inquire Now

Description Parameter

Product Video

LED street lights are playing an increasingly important role in urban development. T68B NERO Pro Street light is FYTLED's newest street lamp that offers excellent value for money. Modern appearance design, convenient and easy installa- tion, various optical angles, IP66 high grade pro- tection, and power range from 30W to 240W makes this modern product a perfect choice for various areas of application and different city roads devel- opment. High efficiency 140lm/W helps to save electricity costs for the city.

Options

Daylight sensor and motion sensor available

3pin, 5pin, 7pin NEMA base

Corrosion-resistant coating for seaside application

Class II luminaire

Electrical disconnector

Optional 10KV or 20KV Surge Protection

CRI 80 Ra available upon request

Optional slip fitters for poles: 60-42mm, 76-60mm

Certificates

-European Market: ENEC, TUV, GS, CB, CE, RoHS

-Australian Market: SAA, C-Tick, RCM

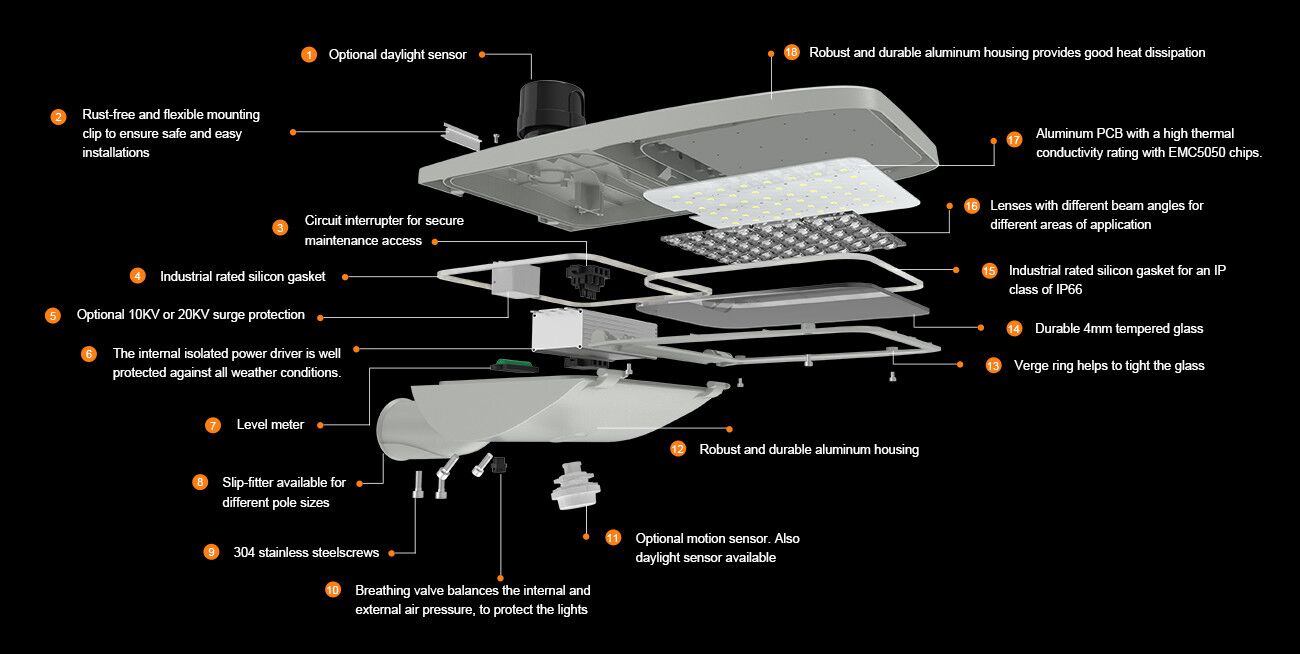

Product Details

Installation

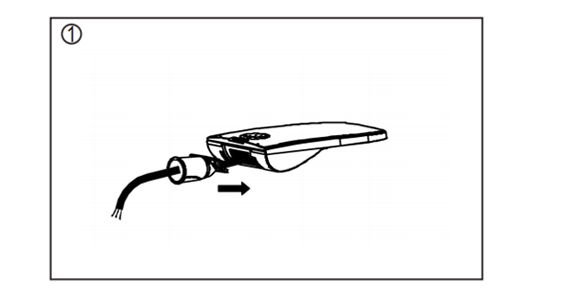

1. 1. Install the slip-fitter horizontally on the fixture .

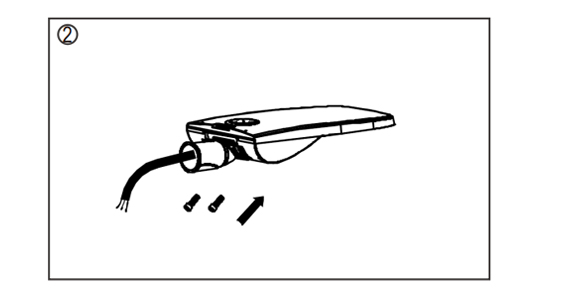

2. 2. Secure the slip-fitter on the fixture with two M8 hexagon screws.

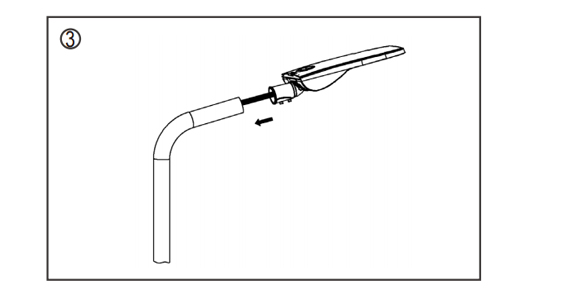

3.3. Mount the fixture on the pole.

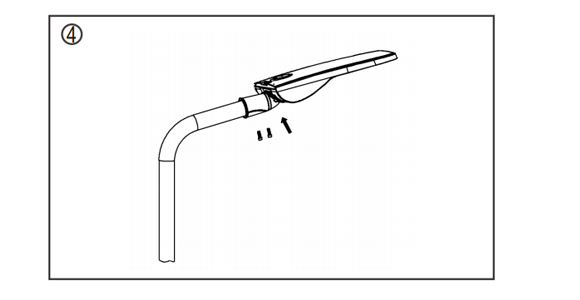

4. 4. Secure the slip-fitter on the fixture by tightening the two screws.

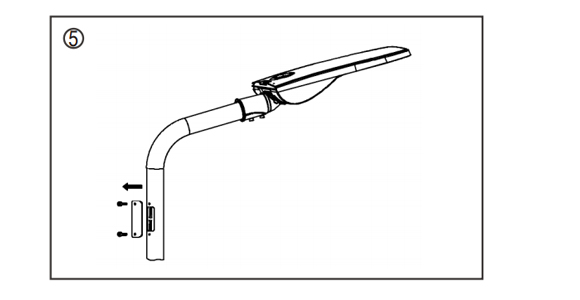

5. 5. Open the maintenance flap of the pole .

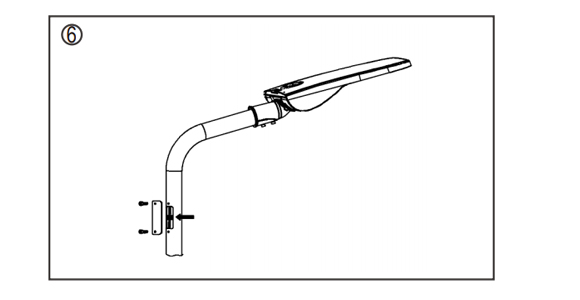

6. 6. Connect the input wire of the fixture with the power line.

Area of application

Parks and parking lots,Loading areas and sporting venues,,

Parks and parking lots
Loading areas and sporting venues

Standard lumen (150~160lm/W)
Model	Nominal wattages (W)	Nominal voltage	Rated luminous efficacy (lm/w)	Nominal luminous flux (lumen)	Beam Angle	LED Quantity	CRI
T68B-30W	30W	AC100~277V 50~60Hz	140�10	4200�300	T2-S T3-M	12 PCS 5W EMC 5050	>70
T68B-40W	40W		140�10	5600�400		12 PCS 5W EMC 5050
T68B-50W	50W		140�10	7000�500		12 PCS 5W EMC 5050
T68B-60W	60W		140�10	8400�600		24 PCS 5W EMC 5050
T68B-80W	80W		140�10	11200�800		24 PCS 5W EMC 5050
T68B-100W	100W		140�10	14000�1000		36 PCS 5W EMC 5050
T68B-120W	120W		140�10	16800�1200		48 PCS 5W EMC 5050
T68B-150W	150W		140�10	21000�1500		48 PCS 5W EMC 5050
T68B-180W	180W		140�10	25200�1800		72 PCS 5W EMC 5050
T68B-240W	240W		140�10	33600�2400		72 PCS 5W EMC 5050

Electrical data		Photometrical data
Operating frequency	47-63HZ	Available light colors	warm white;natural white;daylight white
Type of current	AC100-277V	Available color temperatures	3000K;4000K;5000K;6000K
Power factor ?	>0.9	Color rendering index Ra	>70
Efficiency in %	>92%	Color rendering index Ra	<5
Start time (0.2s / 0.5s / � )	0.1S	UGR (Unified Glare Rating)	<28
Warm-up time to 60 % (1.5s / 2s / � )	0.5S	Available beam angles	T2-S T3-M

Standards & Certification		Temperatures & operating conditions
Type of protection	IP66	Heatsink temperature	20~+69?
Tested dielectric strength	3.75KVac	Ambient temperature	-30~+50?
Safety features	Open circuit protection; short circuit protection ; overvoltage protection	Storage temperature	-40~+80?
Certificates	European market: TUV, GS, CB, D Mark, CE Australian market: SAA, CTick,RMC
Energy efficiency class	A+ & A++

Lifespan		Features/Capabilities and additional product data
Rated nominal Lifetime	5 Years	Base/Socket	42 60 76
Switching cycles	100,000 times	Dimmable	1-10V dimmable, DALI dimmable
Lumen maintenance at e.o.l.	70%

Indoor Lighting

Outdoor Lighting

ST03 Street Light

Product Video

Options

Certificates

Product Details

Installation

Area of application

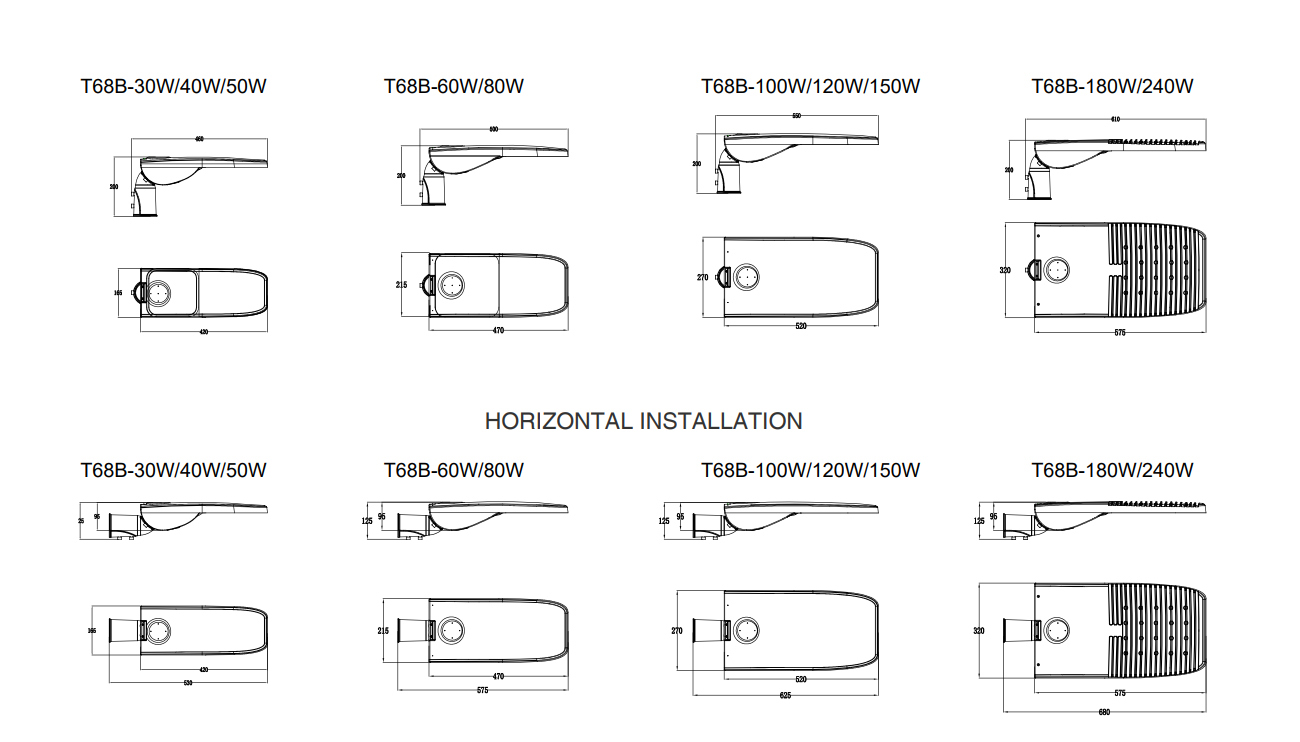

Product Dimension
